VA150 Surge Protector
VA150 Surge Protector

VA150 Surge Protector

    Character

  1. High-energy core component, no follow current;

  2. Integrated structure;

  3. Failure indication function: being failure state if red window appears;

  4. Thermal controlled overheating risking tripping structure, linkage

  5. indication window.



    Specifications



    		VA150/440(10/350μs)
    SPD protection conforms to EN 61643-11.
    		Type1
    SPD installation type conforms to EN61643-1.
    		Class1
    Protection level conforms to DIN VED 0675-6.
    		A
    Maximum continuous AC operating voltage Uc
    		440V
    Maximum continuous DC operating voltage Uc
    		560V
    Impulse current limp (10/350 )
    		25kA
    Voltage protection level Up
    		≤2.5kV
    Response time tA
    		<100ns
    Range of working temperature Tu
    		-40℃~80℃
    Front overcurrent protection device
    		SCB:T08/100
    Minimum area of connecting cable (min)
    		25m㎡
    Maximum area of connecting cable (max)
    		50㎡
    Enclosure protection class
    		IP20
    Crimping Screw
    		M6/M2
    Torque of crimping screw
    		6Nm/0.2Nm
    Shape Material
    		PA66 UL 94 V-0
    Rail installation
    		35mm DIN rail EN 60715
    Width of module
    		2mod.,DIN 43880
    Packing quantity
    		1pcs



    Installation dimensions


    Product picture



    product certification


    Model meaning of SPD for power lin


    Quick Selection Table for SCB and SPD


    Other related products


    Installation Instruction

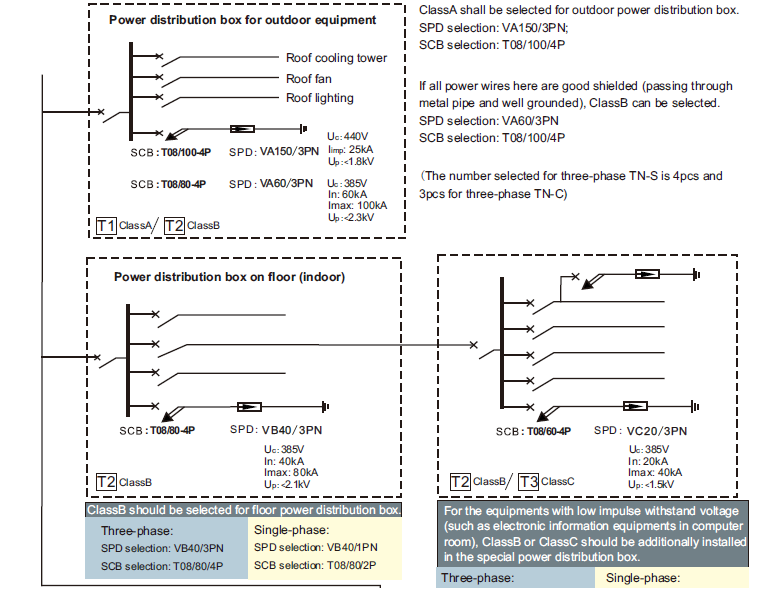

    Typical applications


    Matters needing attention

    1.This product shall be installed by experts.

    2.If the product ,which is bought within 36months, is broken or can not work normally because of manufacturing errors, our company can replace it with the same product. If the product is bought over 36 months, we provide limited service.

    3.Customers should take the full responsibility of quality problems which are caused by opening the product without authorization or using products improperly.

    4.Customers are not allowed to replace components all will in order to keep the effectiveness of the product.
